Shortwave



Our shortwave UV phosphors emit visible light when stimulated with 254nm UV light and do not emit light when stimulated with a 365nm UV light (normal blacklight).  These properties are particularly important for security applications where you do not want a user to easily detect markings, need a mark difficult to duplicate and need a mark resistant to environmental degradation.

You can jump to our Phosphors Dyes and Inks section of our online store by clicking here.

Our shortwave ultraviolet FlashUV7 light can be used with the shortwave UV phosphors.  Please note that shortwave light can quickly cause damage to the human eye if you look into the light for only a few seconds.  The eye can get burned but the damage won't be apparent for a few hours.

UVSW Shortwave Properties

  • Fluoresce visibly under 254nm shortwave UV-C light
  • Will not fluoresce under 365nm longwave UV-A light (black lights)
  • Inorganic stable crystalline structure
  • Average particle size 4.0 microns
  • Decomposition temperature over 1700 degF



 Phosphor Absorption Peak Emission Peak

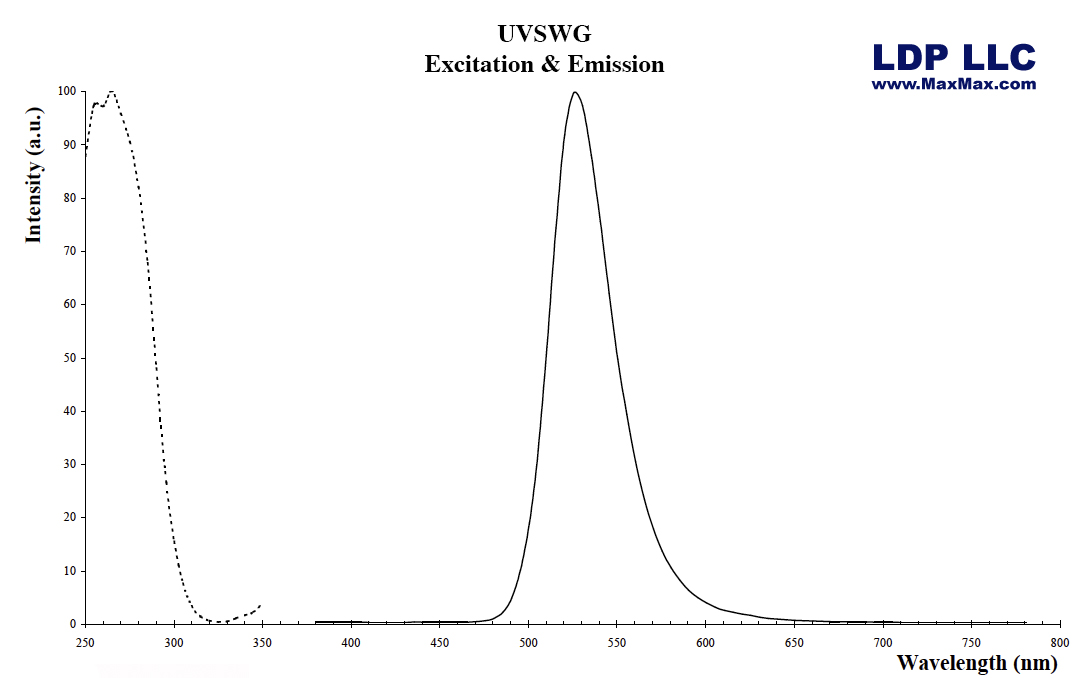

UVSWG 254nm 525nm

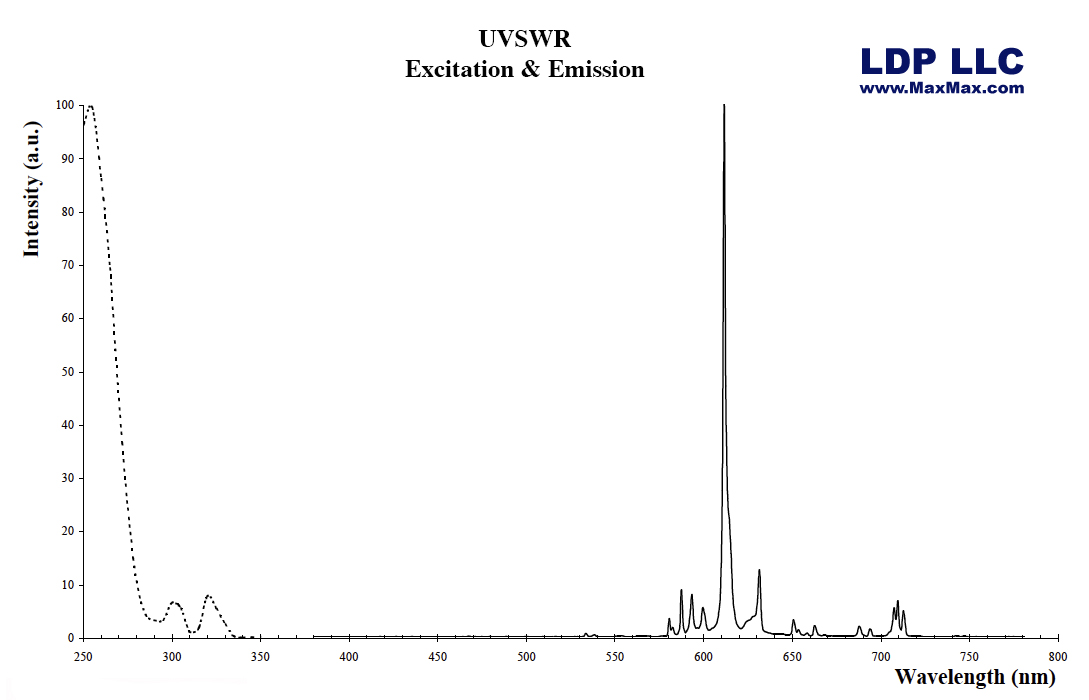

UVSWR 270nm 610nm

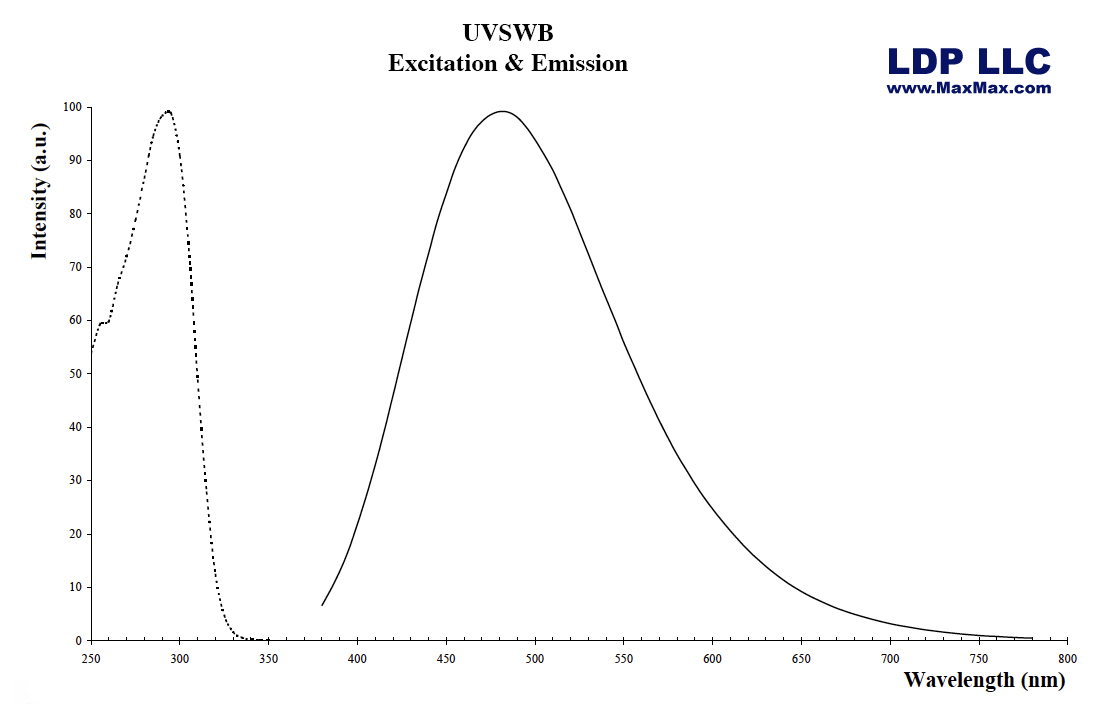

UVSWB 293nm 480nm

Shortwave Phosphor part numbers:

UVSWG: 5 Gram UV Shortwave Green

UVSWG
$43.86 each
UVSWG: 5 Grams Ultraviolet Shortwave Green Fluorescing Powder
Add to cart

UVSWR: 5 Gram UV Shortwave Red

UVSWR
$43.86 each
UVSWR: 5 Grams Ultraviolet Shortwave Red Fluorescing Powder
Add to cart

UVSWB: 5 Gram UV Shortwave Blue



UVSWB
$43.86 each
UVSWB: 5 Grams Ultraviolet Shortwave Blue Fluorescing Powder
Add to cart

The shortwave phosphors are also available as a water based acrylic ink suspension with part numbers:

UVInkSWG-1: 1 Ounce Ink UV Shortwave Green

UVInkSWR-1: 1 Ounce Ink UV Shortwave Red

UVInkSWB-1: 1 Ounce Ink UV Shortwave Blue



We also have a special security ink which glows green under UV shortwave and red under UV longwave with part number:

UVInkLWRSWG-1: 1 Ounce Ink UV Longwave Red and UV Shortwave Green



uvlwrexciteemit_1193741702
$105.00 each
UVInkLWRSWG-1: Sunlight Stable 1 Ounce Longwave Red - Shortwave Green

Based on our UVLWR and UVSWG inorganic sunlight stable UV fluorescent phosphors

Under Longwave 365nm UV light, ink glows Red.

Under Shortwave 254nm UV light, ink glows Green.

Water based acrylic binder to hold phosphor to a surface.

Add to cart
