Face Scanner

Face Scanner Temperature Detection Access Control System

Model: FSTD1

You can see this item in our online store by clicking here

The Face Scanner Temperature Detection Access Control System (FSTD1) can be used stand alone to automatically measure a persons temperate using a non-contact thermal camera with automatic face detection Artificial Intelligence (AI), detect if someone is wearing a mask, and give a voice prompt if user temperature is safe and user is wearing a mask.

The FSTD1 can also be integrated into a variety of systems.  The FSTD1 comes with Windows 10 (only) software that can become part of an access control system.  The FSTD1 software can store over 10,000 unique faces in a Whitelist and Blacklist databases which has fields for things such as name, age, gender, ID type, birthday, last temperature measurement and more.  The FTSD1 has an RJ45 ethernet jack, Wiegand Connector, TTL Alarm Connector, Reset Button, Power Connector and Two Relay connector Normally Open and Normally Closed.  The FSTD1 can be configured to email alerts, upload to an FTP server, store to the Windows machine database, any much more.


Basic Features


  • 1 / 2.8 "2 million pixel ultra-low illumination sensor
  • Maximum output resolution is 1920 × 1080 @ 30fps
  • Ultra-low illumination CMOS, 0.001Lux @ (F1.2, AGC ON)
  • Integrated high-precision thermal image temperature measurement module
  • Temperature measurement accuracy ±0.3 ℃
  • High-performance embedded processor which integrates image acquisition, face detection, face tracking, face recognition
  • Integrated deficient deep learning CNN neural network algorithm
  • Dynamic recognition without special cooperation
  • 7 inch LCD display
  • Supports face recognition for masks and detects whether personnel are wearing masks
  • Supports body temperature detection
  • Support voice alarm for abnormal body temperature
  • Face recognition, temperature detection, and mask detection
  • Recognition speed ≤100ms, recognition rate ≥99.7%
  • Support 10,000 face libraries; Lightning and surge protection measures
  • Waterproof rating IP66
  • Support video overlay and body temperature overlay

Software Overview

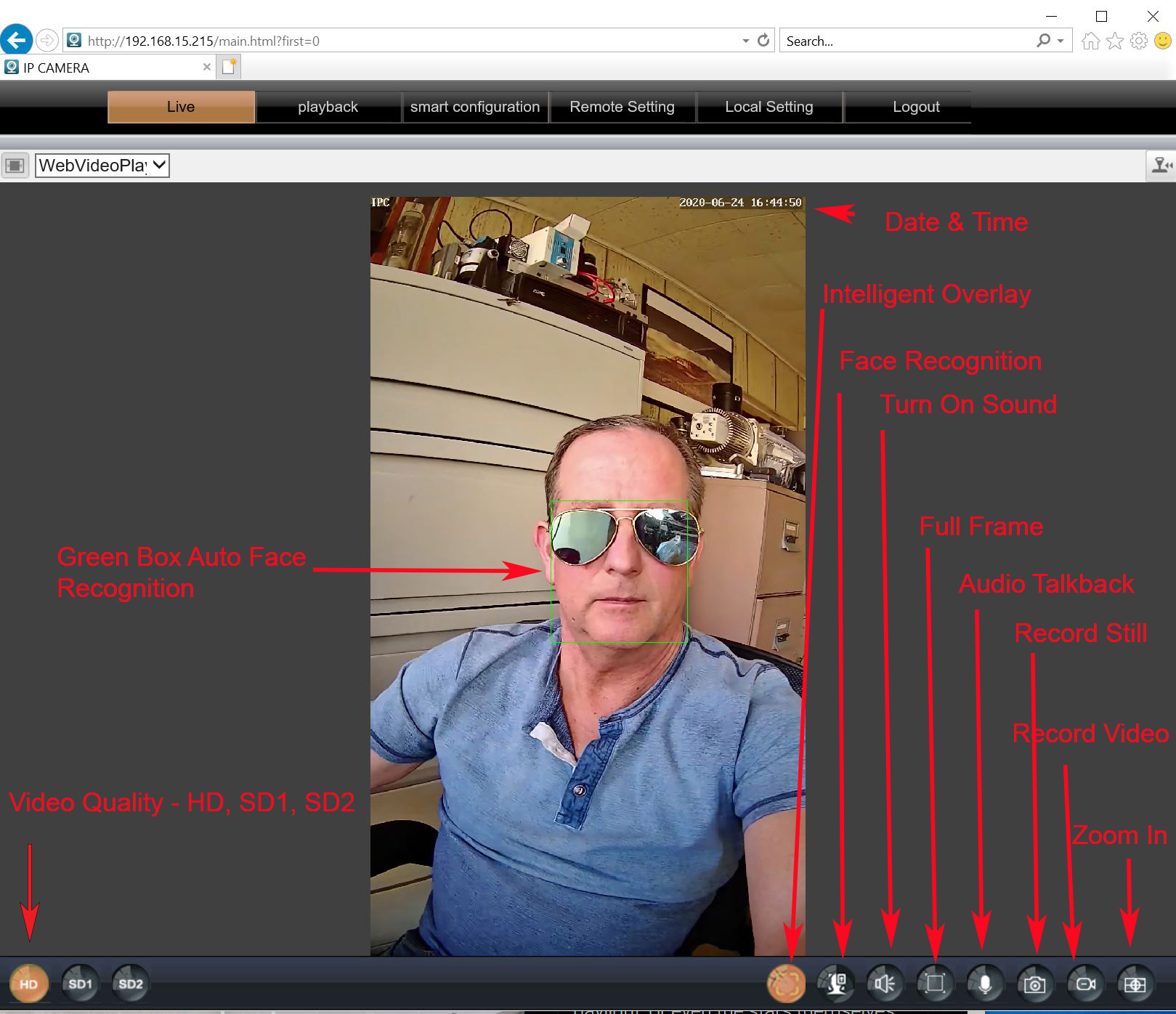

Live View Page
