Nikon D90

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


IR Camera Flashes Sony Alpha A55 GoPro MotorSport HERO Canon G15 Canon G1X Canon SX50IS Canon S95 Canon 1000D (XS) Canon ELPH 110 Canon SX260 Canon 600D (T3i) Canon 650D (T4i) Canon 700D Canon 60D Canon 6D Canon 7D Canon 5D MKII Canon 5D MKIII Nikon D3200 Nikon D5100 Nikon D7100 Nikon D90 Nikon D300s Nikon D600 Nikon D800 Nikon D3x Lumix LX7 Olympus E620 Casio EX-FH25 Olympus Pen E-P2 Pentax K-5 Lumix GX1 Lumix GF3

Order

Nikon D90 12.3 MegaPixel Prosumer Infrared-Enabled Camera

Models:

XNiteNikonD90          UV+Visible+IR

XNiteNikonD90IR      IR-Only (715nm or 830nm)

XNiteNikonD90HR     HR (High Resolution / Hot Rod)

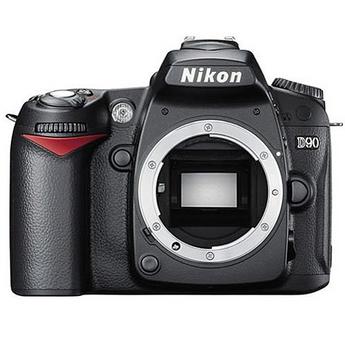

Nikon D90 SLR Digital Camera (Camera Body)





The Nikon D90 is a prosumer digital SLR camera.  Because of the nature of the IR enabling modification, we do not recommend this camera to anyone who does not fully understand the implications of the modification.  This camera offers great IR sensitivity, dynamic range and low noise.

We can modify this camera to be IR+Visible+UV,  IR-Only and High Resolution (HR) . An IR+Visible+UV camera will see both Infrared, Ultraviolet and Visible light after modification.  An IR-Only camera will only see IR from 715nm through 1200nm.  The IR-Only camera has an internal 715nm IR filter with an antiflection coating.  The 715nm filter performs similarly to the Hoya RM72 and Wratten 89B.

Please note that the anti-dust system is disabled on our conversions.  Live View will work correctly.

Modification will void your warranty.

We can modify your D90 for $450 + return S&H ($20 UPS ground insured domestic USA).  Turn around is 1 or 2 days from receipt.  We only need the camera and charged battery for testing along with a cover letter specifying the conversion type.


D90 Specifications

Effective pixels
 12.3 million
Image sensor
 CMOS sensor, 23.6 x 15.8 mm; total pixels: 12.9 million; Nikon DX format
Image size (pixels)
 4,288 x 2,848 [L], 3,216 x 2,136 [M], 2,144 x 1,424 [S]
Top Continuous Shooting Speed at full resolution (CH)
 4.5fps
Continuous Shooting Options
 CH: up to 4.5fps
CL: Up to 4fps
LCD Monitor
 3.0-inch diadonal, Super Density display with approx. 920,000 dots (VGA), 170? viewing angle, approx. 100% frame coverage, and brightness adjustment with 7 levesl
Shutter type
 Electronically controlled vertical0travel focal-plane
Shutter Speed Range
 1/4000 - 30 sec. in steps of 1, 1/2, or 1/3 EV
Bulb Shutter Setting
 Yes
Sensitivity
 ISO 200 to 3200 in steps of 1/3 EV, can also be set to approx. 0.3, 0.7 or 1 EV (ISO 100 equivalent) below ISO 200, or to approx. 0.3, 0.7 or 1 EV (ISO 6400 equivalent) over ISO 3200, ISO sensitivity auto control available
Storage media
 SD and SDHC memory cards
Storage System
 JPEG: JPEG-baseline-compliant; can be selected from Size priority and Optimal Quality Compressed 12-bit NEF (RAW)
Video: AVI format
File System
 Compliant with DCF 2.0, EXIF 2.21, DPOF
Exposure modes
 Auto modes (auto, auto [flash off]), Advanced Scene Modes (Portrait, Landscape, Sports, Close-up, Night Portrait), Programmed auto with flexible program (P), Shutter-priority auto (S), Aperture-priority auto (A), Manual (M)
Exposure metering
 3D Color Matrix Metering II, Center-Weighted 420 pixel RGB sensor, and Spot Metering
Metering Range
 1) 0 to 20 EV (Matrix or center-weighted metering)
2) 2 to 20 EV (Spot metering) (ISO 100 equivalent, f/1.4 lens, at 20 degrees C/68 degrees F)
Exposure Meter Coupling
 CPU
Exposure Compensation
 ?5EV
Exposure Lock
 Yes
Shutter Release Modes
 Live View [LV] mode, Continuous low-speed [CL] mode (1-4fps), Single Frame [S] mode, Self-timer mode, Continuous high-speed [CH] mode (4.5fps)
Movie Modes
 Movie with sound
HD 1280x720 (24fps), VGA 640x480 (24fps), QVGA 320x240 (24fps)
White Balance
 Shade, Sun, Fine Tune by Kelvin color temperature setting, Auto, Preset, Fluorescent, Incandescent, Flash, Auto (TTL white balance with 420-pixel RGB sensor) Seven manual modes with fine-tuning; Sun Shade Fluorescent Incandescent Flash Preset Fine Tune by Kelvin Color temperature setting
White Balance Bracketing
 Yes, 2 0r 3 exposures, in increments of 1, 2, or 3
D-lighting Bracketing
 Yes, 2 exposures
Live View Shooting
 Yes
Playback Functions
 Auto image rotation, Histogram, Zoom, Shooting date, Slideshow, Highlight point display, Full frame, Sounds playback, Pictmotion, D-Movie playback Thmbnail (4, 9, 72 segments), Calendar
Interface
 HDMI and NTSC, Hi-Speed USB 2.0
Lens Mount
 Nikon F bayonet mount
Compatible Lenses
 1) DX AF NIKKOR: All functions possible
2) D-/G-type AF NIKKOR (excluding IX NIKKORlenses): All functions possible (excluding PC Micro- NIKKOR)
3) AF NIKKOR other than D-/G-type (excluding lenses for F3AF): All functions except 3D-Color Matrix Metering II possible
4) AI-P NIKKOR: All functions except Autofocus, 3D-Color Matrix Metering II possible
5) Non-CPU AI NIKKOR: Autofocus not supported. Can be used in exposure modes A and M but exposure meter does not function. Electronic range finder can be used if maximum aperture is 5.6 or faster; Color Matrix Metering and aperture value display supported if user provides
Picture Angle
 1.5
Viewfinder
 Frame coverage: Approx. 96%, 19.5mm Eyepoint, -2 to 1.0 m-1 Diopter Adjustment
Reflex Mirror
 Quick-return type
Focusing Screen
 Type-B BriteView Clear Matte screen Mark II with superimposed focus brackets and On-Demand grid lines
Interchangeable Focusing Screens
 No
Viewfinder Magnification
 Approx. 0.94
Depth-of-field Control
 Yes
Autofocus System
 Nikon Multi-CAM 1000 autofocus module with TTL phase detection, 11 focus points (including 1 cross-type sensor) and AF-assist illuminator (range approx. 0.5 - 3m/1 ft. 8in. - 9 ft. 10 in.)
Autofocus Sensitivity
 -1-+19 EV (ISO 100, 20?C/68?F
Focus Modes
 Continuous-servo (C)
Single-Serve AF (S)
Manual (M) with electronic rangefinder
Live View autofocus: Face priority, wide area, normal area
Single-point AF mode
 Yes
Dynamic AF Mode
 Yes
Auto-area AF Mode
 Yes
Focus Lock
 Half press of shutter release button (single-point AF in AF-S), AE-L/AF-L button
Picture Control
 Vivid, Portrait, Landscape, Monochrome, Standard, Nine User-customizable settings, Neutral
In-Camera Image Editing
 Filter effects, Color balance, Monochrome, Image overlay, D-lighting, Trim, Distortion control, NEF (RAW) processing, Quick Retouch, Straighten
Built-in Flash
 Yes
Built-in Flash Distance
 Guide #: 56 at ISO 200 (Feet)/17 at ISO 200 (Meters)
Dust-Off Reference Photo
 Yes
Save/Load Camera Settings
 Yes
Nikon Creative Lighting System Compatibility
 Yes
Built-in Commander mode 2 groups: A/B 4 channels: 1-4 TTl, Non-TTl Auto and Manual mode
Flash Sync Speed
 up to 1/200
FP High Speed Sync: up to 1/4000
Power Sources
 One Rechargeable Li-ion Battery EN-EL3e (up to 850 shots), Multi-Power Battery Pack MB-D90 (optional) with one or two Rechargeable Li-ion Battery EN-EL3e or six R6/AA-size alkaline, Ni-MH, lithium or nickel-manganese batteries (Battery Holder MS-D200 is required when using R6/AA-size batteries)
Battery Charger
 MH018a Quick Charger
Tripod Socket
 1/4-20
Dimensions (W x H x D)
 Approx. 132 x 103 x 77 mm (5.2 x 4.1 x 3.0 in.)
Weight
 Approx. 620 g (1 lb. 6 oz.) without battery, memory card, body cap or LCD monitor cover
Supplied Software
 Software Suite CD-ROM
Supplies Accessories
 EN-EL3e Rechargeable Li-ion Battery, MH-18a Quick Charger, DK-5 Eyepiece Cap, DK-21 Rubber Eyecup, UC-E4 USB Cable, EG-D2 Audio Video Cable, AN-DC1 Camera Strap, BM-10 LCD Monitor Cover, Body Cap, BS-1 Accessory Shoe Cover, Software Suite CD-ROM Supplied accessories may differ depending on country or area
Optional Accessories
 MB-D90 Multi-Power Battery Pack, ML-L3 wireless remote control, DK-21M Magnifying Eyepiece, EH-5a AC Adapter, Capture NX2 Software, Camera Control Pro 2
