Nikon D600

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


IR Camera Flashes Sony Alpha A55 GoPro MotorSport HERO Canon G15 Canon G1X Canon SX50IS Canon S95 Canon 1000D (XS) Canon ELPH 110 Canon SX260 Canon 600D (T3i) Canon 650D (T4i) Canon 700D Canon 60D Canon 6D Canon 7D Canon 5D MKII Canon 5D MKIII Nikon D3200 Nikon D5100 Nikon D7100 Nikon D90 Nikon D300s Nikon D600 Nikon D800 Nikon D3x Lumix LX7 Olympus E620 Casio EX-FH25 Olympus Pen E-P2 Pentax K-5 Lumix GX1 Lumix GF3

Order

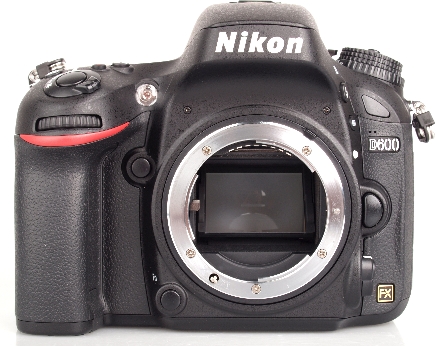

Nikon D600 24.3 MegaPixel Enabled SLR Camera

Models:

XNiteNikonD600        UV+Visible+IR

XNiteNikonD600IR    High-Red (590nm or 665nm) and IR-Only (715nm or 830nm)

XNiteNikonD600HR   HR - Visible High Res / Hot Rod



We can modify this camera to be UV+Visible+IR,  High-Red (590nm or 665nm), IR-Only (715nm or 830nm) or Visible High Resolution (HR).  An UV+Visible+IR camera will see UV,  Infrared and Visible light after modification.

bulletIR+Visible+UV: Camera see everything the sensor is cable of seeing.  Camera will see some UV, the entire visible range and infrared from 715nm to 1200nm.
bulletHigh-Red

665nm: Camera will see from 665nm to 1200nm.  Red channel will see visible red and infrared.  Blue and green channels will only see infrared.

590nm: Camera will see from 590nm to 1200nm.  Red channel will see visible red and infrared.  Green channel will see come visible green and infrared.  Blue channel will only see infrared.

bulletIR-Only

715nm:  All channels  only see infrared.  The red channel is the most open to the IR and contains somewhat different information than the blue and green channels allowing for some creative color effects such as red-blue channel swapping to get deep blue skies.  A 715nm converted camera sees about the same amount of light as a stock camera so apertures and shutter are similar to a stock camera.  715nm is similar to a Hoya RM72 or Wratten 89B.

830nm:  All channels only see infrared.  Camera loses about 2 stops of exposure.  Once you equalize color levels, picture will be almost completely black and white.  The infrared effect is more intense at 830nm - skies are darker, clouds whiter and you see further through smoke and haze.

bulletHR (High Resolution/ Hot Rod).  An HR camera has the Anti-Aliasing (Blur) filter removed and replaced with a thicker IR Cut Filter to keep the same focal plane.  A Visible HR camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.



  HR (High Res / Hot Rod) IR+Visible IR-Only
Model XNiteNiikonD600HR XNiteNikonD600 XNiteNikonD600IR
Camera can take normal visible pictures Yes Yes with CC1 filter No
Camera can take IR pictures No Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures NA No Yes
Camera autoexposure will work with IR pictures NA No Yes.  May need Exp Comp Adj
User can see through lens when taking IR pictures No.  Camera is not IR sensitive No Yes.  Filter is internal.

Please note that the anti-dust system is disabled on our conversions.  Live View will work correctly.

Modification will void your warranty.

We can modify your D600 for a $450 fee + return shipping & handling ($20 for UPS ground insured within continental USA).
