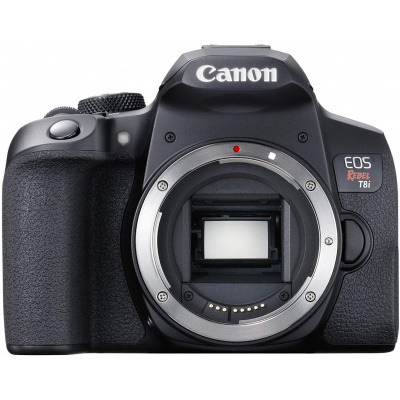

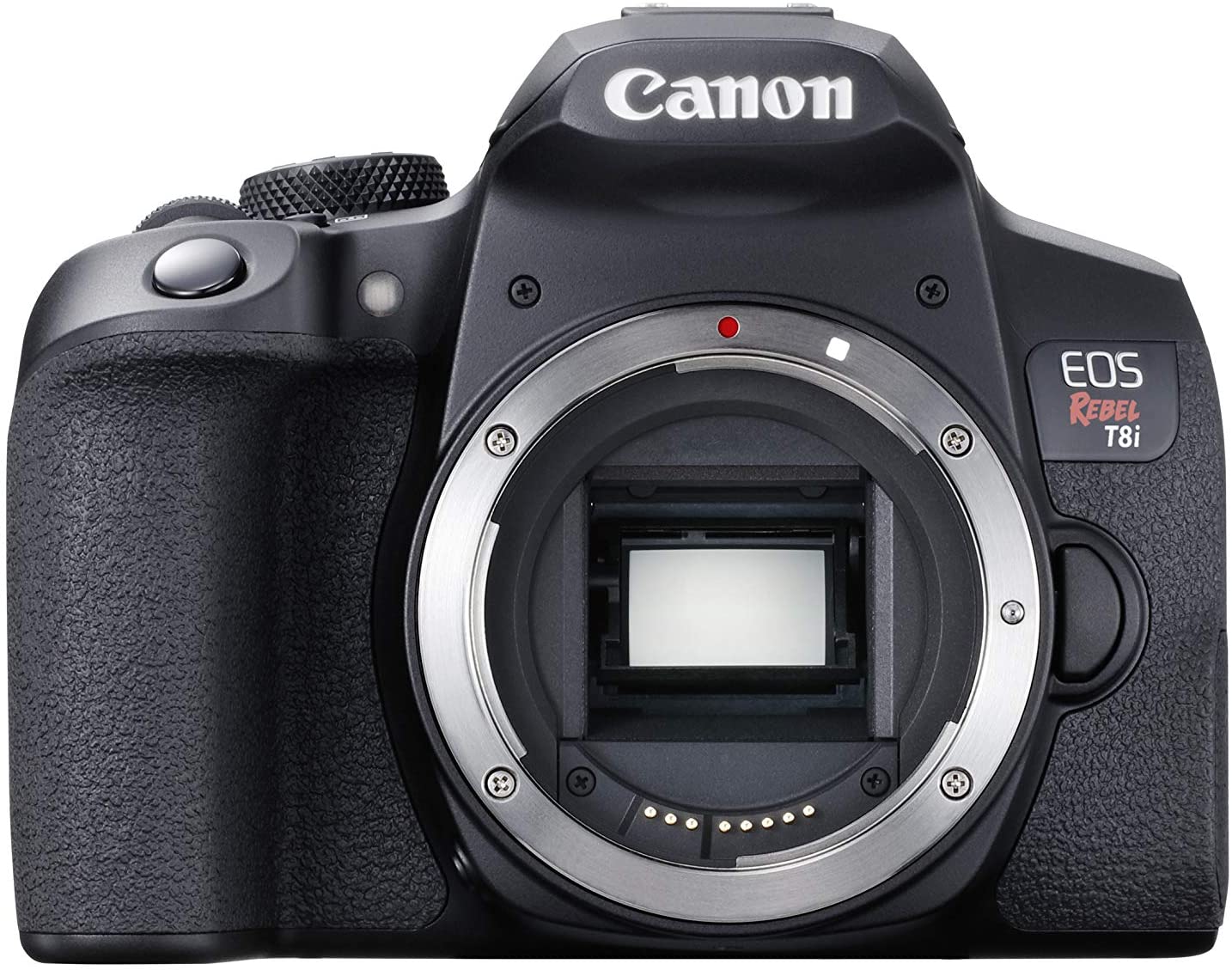

XNiteCanonT8i-MNCG: Canon T8i 850D 25.8 Megapixel Monochrome UV-VIS-IR No Cover Glass

canont8ifront_1457071954
$2,731.25 each

Camera modified for monochrome Full Spectrum UV-VIS-IR Functionality with no coverglass over sensor.

  • Used for highest possible resolution (every layer of glass adds distortion)
  • Sensor cannot be physically touched without damaging sensor!



Image Sensor
Sensor Type: CMOS
Sensor Manufacturer: Canon
Effective Megapixels: 24.1
Sensor Format: APS-C
Sensor size: 332.27mm2 (22.30mm x 14.90mm)
Approximate Pixel Pitch: 3.72 microns
Focal Length Multiplier: 1.6x
Aspect Ratio: 3:2
Color Filter Type: RGBG
Anti Aliasing Filter: Fixed
Self-Cleaning: Yes
Sensor shift image stabilization: No
On-Sensor Phase Detect: Yes
DxO Sensor Score:
DxO Color Depth Score (bits):
DxO Dynamic Range Score (evs):
DxO Maximum Effective ISO Score (iso):
Image Capture
Image Resolution: 6000 x 4000 (24.0 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
2976 x 1984 (5.9 MP, 3:2),
2400 x 1600 (3.8 MP, 3:2),
6000 x 3368 (20.2 MP, 16:9),
3984 x 2240 (8.9 MP, 16:9),
2976 x 1680 (5.0 MP, Other),
2400 x 1344 (3.2 MP, Other),
5328 x 4000 (21.3 MP, 4:3),
3552 x 2664 (9.5 MP, 4:3),
2656 x 1992 (5.3 MP, 4:3),
2112 x 1600 (3.4 MP, Other),
4000 x 4000 (16.0 MP, 1:1),
2656 x 2656 (7.1 MP, 1:1),
1984 x 1984 (3.9 MP, 1:1),
1600 x 1600 (2.6 MP, 1:1)
Image File Format: C-RAW, JPEG, .CR3 RAW (14-bit)
Continuous-mode frames/second: n/a
Video Capture
Can take movies: Yes
Movie Resolution: 3840x2160 (24p)
1920x1080 (60p/​50p/​30p/​25p/​24p)
1280x720 (60p/​50p/​30p/​25p)
Movie File Format: MPEG-4 AVC/H.264 video with AAC stereo audio in MP4 container
Composite Video Out: Yes
NTSC/PAL Switchable Video: Yes
Video Usable as Viewfinder:
HD Video Out: Yes
HD Video Connection: HDMI
Lens & Optics
Lens Mount: Canon EF/EF-S
Lens: Canon EF-S 18-55mm f/4-5.6 IS STM
Focal Length (35mm equivalent): 29 - 88mm
Focal Length (actual): 18 - 55mm
Zoom Ratio: 3.06x
Aperture Range: f/4 - 22 (wide) / f/5.6 - 38 (tele)
Integrated ND Filter: No
Normal Focus Range: 25 cm to Infinity
9.8 in to Infinity
Macro Focus Range:
Filter Thread: 58.0mm
Thread Type: n/a
Optical Image Stabilization: Yes
Digital Zoom:
Digital Zoom Values:
Auto Focus
Auto Focus: Yes
Auto Focus Type: OVF: AF-dedicated CMOS sensor, 45-points, up to 45 cross-type (f/5.6), 1 dual-cross (f/2.8 and f/5.6), 27 support f/8 (9 cross-type); Live View: Dual-Pixel CMOS AF
Auto Focus Assist Light? Yes
Manual Focus: Yes
Viewfinder
Viewfinder: Optical / LCD
Viewfinder Type: SLR type; fixed eye-level pentamirror, ~95% coverage, ~0.82x mag., 19mm eyepoint, -3 to +1 diopter
Focus Peaking: Yes
EVF Resolution: n/a
Viewfinder Magnification (35mm equivalent):
Viewfinder Magnification (nominal/claimed):
Display
Eye-level Viewfinder: Yes
Rear Display: Yes
Rear Display Size (inches): 3.0
Rear Display Resolution: 1,040,000 dots (345,600 px)
Touchscreen: Yes
Articulating Screen: Yes
Tilt Swivel Screen: Yes
Selfie Screen: Yes
Max Playback Zoom: 10.0x
Top Deck Display: No
Exposure
Maximum ISO (native): 25600
Minimum ISO (native): 100
ISO Settings: Auto, 100 - 25600 in 1/3EV steps, Expandable to 51200
Auto ISO Mode: Yes
White Balance Settings: Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent, Flash, Custom WB, Color Temperature K (Manually adjustable between 2000 - 10000K)
Shutter Speed Range: 1/4000 - 30 sec
Bulb Mode: Yes
Exposure Compensation: +/- 5.0EV in 0.3EV steps
Metering Modes: 220,000-pixel RGB+IR metering sensor; 216-zone (18 x 12) metering optical viewfinder; Evaluative (linked to all AF points), Center-weighted, Partial (center, approx. 6.5% of viewfinder), Spot (center, approx. 2.0% of viewfinder)
Program Auto Exposure: Yes
Aperture Priority: Yes
Shutter Priority: Yes
Full Manual Exposure: Yes
Creative Exposure Modes: Scene Intelligent Auto, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports, Special Scene (Group Photo, Kids, Food, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control), Creative Filters (Grainy B/W, Soft Focus, Fish-eye, Water Painting, Toy Camera, Miniature, HDR Art (Standard/Vivid/Bold/Embossed)
Self Timer: 10, 2, Remote, 10s Continuous (2-10) seconds
Time Lapse (intervalometer): Yes
High Resolution Composite: No
Flash
Built-in Flash: Yes
Flash Modes: E-TTL II Auto, Manual, Red-Eye Reduction
Flash Guide Number (ISO 100): 12.0 m / 39.4 ft.
Flash Range Description: Guide Number is 12m/39.4 ft at ISO 100; Range is lens aperture dependent
Max Flash Sync: 1/200
Flash Exposure Compensation: +/- 2.0 EV in 0.3EV steps
External Flash Connection: Hot Shoe
Built-In Wireless Flash Control: Full TTL exposure
Image Storage
Usable Memory Types: SD / SDHC / SDXC
UHS Support: UHS-I
Other Memory:
Dual Card Slots: No
RAW Capture Support: Yes
Uncompressed Format: .CR3 RAW (14-bit)
Movie File Format: MPEG-4 AVC/H.264 video with AAC stereo audio in MP4 container
Included Memory: No memory included
Included Memory Type:
Connectivity
Built-In Wi-Fi: Yes
NFC: No
Bluetooth: Yes
Built-In GPS: No
Microphone Jack: Yes
Headphone Jack: No
External Connections: USB 2.0 High Speed,Bluetooth,WiFi
PictBridge Compliant: Yes
DPOF Compliant: Yes
Remote Control: Yes
Remote Control Type: Optional wired, IR wireless, Bluetooth or Wi-Fi
Connections (extended): Mini (Type-C) HDMI, USB Micro-B (USB 2.0), External 3.5mm Stereo Mic Jack
Performance Timing
Cycle time for JPEG shooting in single shot mode (seconds per frame, max resolution):
Cycle time for RAW shooting in single shot mode (seconds per frame):
Buffer size for RAW shooting in single shot mode (frames):
Cycle time for RAW+JPEG shooting in single shot mode (seconds per shot):
Camera penalizes early shutter press?
JPEG shooting speed in burst mode (fps, max resolution):
Buffer size for JPEG shooting in burst mode (frames, max resolution):
RAW shooting speed in burst mode (fps):  7.5
Buffer size for RAW shooting in burst mode (frames):
RAW+JPEG shooting speed in burst mode (fps):
Buffer Size for RAW+JPEG shooting in burst mode (frames):
Shutter lag (full AF, wide/mid):
Shutter lag (full AF, tele):
Shutter lag (full AF, live view - DSLR):
Shutter lag (prefocused, live view - DSLR):
Shutter Lag (manual focus):
Shutter lag (full AF, with flash):
Shutter Lag (prefocused):
Shutter Lag (notes):
Startup Time:
Play -> Record Time:
Flash cycle time, full power:
Power
Battery Life, Stills (CIPA Rating Monitor/Live View):
Battery Life, Still (CIPA Rating OVF/EVF):
Battery Life, Video:
Battery Form Factor: Proprietary LP-E17
Usable Battery Types: Lithium-ion rechargeble
Batteries Included: 1 x Proprietary LP-E17 Lithium-ion rechargeble
Battery Charger Included (dedicated charger or AC/USB adapter): Yes
Dedicated Battery Charger Included: Yes
Internal Charging Supported: No
