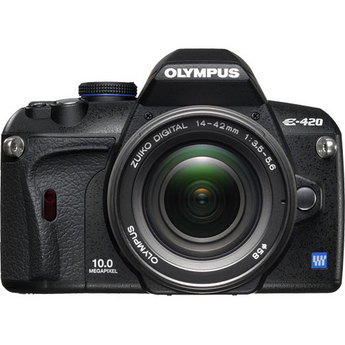

Olympus E420: 10.0 MegaPixel Light Small DSLR
Model: XNiteE420 - UV+Visible+IR
Model: XNiteE420IR - IR Only 715nm
Model: XNiteE420HR - HR (High Resolution / No AA Filter)
DISCONTINUED. This model has been replaced with the E520
We can modify this camera to be UV+Visible+IR, IR-Only (715nm or 830nm option) or Visible Hot Rod. An UV+Visible+IR camera will see UV, Infrared and Visible light after modification. An IR-Only camera will only see IR from 715nm through 1200nmm or 830nm through 1200nm depending on the glass installed inside the camera.
A Visible Hot-Rod camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens. Please see more about this conversion here.
| HR (High Res / Hot Rod) | IR+Visible | IR-Only | |
| Model | XNiteNiikonD700HR | XNiteNikonD700 | XNiteNikonD700IR |
| Camera can take normal visible pictures | Yes | Yes with CC1 filter | No |
| Camera can take IR pictures | No | Yes with external IR filter | Yes with no extra filters |
| Camera autofocus will work with IR pictures | NA | No | Yes |
| Camera autoexposure will work with IR pictures | NA | No | Yes. May need Exp Comp Adj |
| User can see through lens when taking IR pictures | No. Camera is not IR sensitive | No | Yes. Filter is internal. |
Please note that the anti-dust system will continue to work on this camera unlike many other DSLR's. Live View will work correctly.
Modification will void your warranty.
We can modify your E420 or E520 for a $450 fee + return shipping & handling ($20 for UPS ground insured within continental USA).
|
Body color |
Black |
|---|---|
| Sensor | • Four Thirds Live MOS sensor • 10 million effective pixels • 11.8 million total pixels • RGB Color Filter Array |
| Anti-dust measures | • Supersonic Wave Filter |
| Image sizes | • 3648 x 2736 • 3200 x 2400 • 2560 x 1920 • 1600 x 1200 • 1280 x 960 • 1024 x 768 • 640 x 480 |
| Image quality | • ORF (12-bit compressed RAW) • JPEG Superfine (1:2.7) • JPEG fine (1:4) • JPEG normal (1:8) • JPEG basic (1:12) • ORF (RAW) + JPEG |
| Color space | • sRGB • AdobeRGB |
| Lens mount | Four Thirds mount |
| Autofocus | • TTL Phase detection • Contrast detection system (with 25mm f2.8, 14-42mm f3.5-5.6, 40-150mm f4-5.6) |
| Lens servo | • Single AF (S-AF) • Continuous AF (C-AF) • Manual focus (MF) |
| AF Area mode | • Auto • Option selectable |
| Focus area | • 3-point multiple AF with phase detection • 11-point multiple AF with contrast detection |
| Focus lock | Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AEL button (customizable) |
| Focus tracking | Interlocked with Continuous-AF |
| AF Assist | Yes |
| Exposure mode | • Programmed auto (P) with flexible program • Shutter-priority auto (S) • Aperture priority auto (A) • Manual (M) • Scene program AE - Portrait - Landscape - Macro - Sport - Night + portrait • Scene select AE - Portrait - Landscape - Landscape + portrait - Night Scene - Night + portrait - Children - Sport - High-key - Low-key - Digital image stabilization - Macro - Nature Macro - Candle - Sunset - Fireworks - Documents - Beach/snow - Panorama (when using Olympus xD-Picture Card) |
| Metering | TTL open-aperture exposure metering system • Digital ESP metering • 49-point multi pattern metering • Center-weighted average • Spot: Meters approx 2% for viewfinder screen • Spot with Highlight control • Spot with Shadow control |
| Metering range | • EV 1 - 20 (at normal temperature, 50mm f2, ISO 100) |
| Exposure compen. | • +/- 5.0 EV • 1/3 EV steps |
| AE Lock | Exposure can be locked by pressing shutter-release button halfway or by pressing AEL button (customizable) |
| AE Bracketing | 3 frames in 0.3, 0.7 or 1 EV steps |
| Sensitivity | • Auto • ISO 100 • ISO 200 • ISO 400 • ISO 800 • ISO 1600 |
| Shutter | • Computerized focal-plane shutter • Auto mode: 2 - 1/4000 sec • P,S,A, M modes: 60 - 1/4000 sec • Bulb: up to 30 min |
| White balance | • Auto (TTL white-balance with Live MOS sensor) • Eight manual modes with fine-tuning o Lamp (3000K) o Fluorescent 1 (4000K) o Fluorescent 2 (4500K) o Fluorescent 3 (6600K) o Daylight (5300K) o Flash (5500K) o Cloudy (6000K) o Shade (7500K) • Preset white balance (can register 2000K - 140000K) |
| WB fine tuning | +/- 7 steps in Amber-Blue or Green-Magenter axis |
| Image parameters | • Vivid, Natural, Muted, Portrait, Monotone • Contrast, Saturation and Sharpness adjustable in 5 steps (no Saturation in Mono) • Four levels of gradation available • Picture tones and filter effects availabl in Monotone mode |
| Viewfinder | • Optical fixed eye-level • Penta-mirror type • Built-in diopter adjustment (-3.0 to +1.0 m-1) • Frame coverage 95% (approx.) • Viewfinder magnification approx. 0.92x with 50mm lens at infinity; -1.0 m-1 • Focusing screen: Neo Lumi-Micro Mat screen |
| Viewfinder information |
• Aperture value |
| Live view | • 100% field of view • Exposure adjustment preview • White Balance adjustment preview • Gradation setting preview |
| LCD monitor | • HyperCrystal II LCD (semi-transmissive TFT color LCD) • 2.7" • 230,000 dots |
| Playback field of view | 100% |
| Built-in flash | Guide number 12 at ISO 100 (m) |
| Sync speed | 1/180 sec or less. Super FP up to 1/4000 |
| Flash control |
• TTL-Auto (with pre-flash) |
| Flash mode | • Auto • Red-eye reduction • Red-eye reduction slow sync • Slow sync at first curtain • Slow sync at second curtain • Fill-in |
| Flash compensation | • -2 to +2 EV • 1/3 steps |
| Wireless flash | • Compatible with FL-50R or FL-36R • 4 channels • 3 groups |
| Shooting modes | • Single-frame shooting (3.5 fps) • Sequential shooting • Self-timer • Remote control |
| Continuous buffer | • Unlimited Large, Normal compression JPEG, 8 RAW frames |
| Self-timer | 12 or 2 sec |
| Remote control | RM-UC1 cable release or RM-1 optical remote control |
| Playback functions | • Single frame • Index (4/9/16/25/49/100 frames) • Calendar • Zoom (2-14x) |
| Storage | • Compact Flash Type I and II • xD Picture Card |
| Video output | NTSC or PAL selectable |
| Connectivity | • High speed USB • Dedicated AV multi-connector |
| Languages |
English, French, Spanish, Portuguese (US Spec) |
| Power | • BLS-1 Li-ion battery |
| Working environment | • 0 to 40°C (32 to 104°F) • 30-90% humidity |
| Dimensions | 129.5 x 91 x 53 mm (5.1 x 3.6 x 2.1 in) |
| Weight (no batt) | 380 g (13.4 oz) |
| Supplied accessories |
E-420 body, Li-ion battery BLS-1, Li-ion battery charger BCS-1, USB cable, Video cable, Shoulder strap, OLYMPUS Master CD-ROM, Instruction manual, Registration card, Eye piece cap EP-4 |
