This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


Discontinued.  This camera has been replaced by the Fuji S100fs

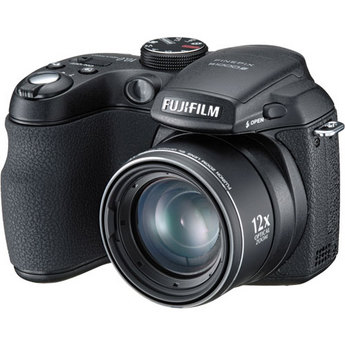

Model: XNiteFujiS1000fd   UV + Visible + IR





10 Megapixels  3200 ISO   12x Optical Zoom

The Fuji S1000fd does not have a very good filter ring lens mount.  For the UV+Visible+IR cameras, e add a stepping metal stepping ring adapter to the lens so that you can mount 58mm filters.  Because of this, the stock lens cover does not fit.  We include a new 58mm lens cap.

The camera uses 58mm filters which are available here.  Note, you should use the XNiteCC1 filter to block infrared light when you want to take a normal picture.  For infrared pictures, you have many options.  If you are just starting, we recommend at least one high cut filter (like a 1000nm or XDP) and one low cut filter (like a 715nm) because they have very different looks.

Because the camera uses an Electonic Viewfinder (EVF), all the focusing is done through the image sensor and you will see the UV, visible or infrared image before you take the picture.

We can convert your Fuji S1000fd for $275 + return S&H ($20 UPS ground insured domestic USA).  Turn around is usually 1 or 2 days from receipt.

This camera uses 58mm Filters available Here.  For normal photographs, you should order an XNiteCC1 filter.  For UV photographs, you can use our XNite330 or XNiteUVR.  We recommend stacking our XNiteBP1 filter to block the small infrared transmission bump that all UV filters have.



Specifications

Model

FinePix S1000fd
Number of effective pixels *1

10.0 million pixels
CCD sensor

1/2.3-inch CCD
Storage media
bulletInternal memory (Approx. 24MB)
bulletxD-Picture Card™ (16MB - 2GB)
bulletSD memory card
bulletSDHC memory card *2
File format
Still image

JPEG (Exif Ver 2.2) *3

Movie

AVI (Motion JPEG) with sound

Audio

WAVE format, Monaural sound

(Design rule for Camera File system compliant / DPOF-compatible)
Number of recorded pixels

Still image: 3,648x2,736 / 3,648x2,432 (3:2 format) / 2,592x1,944 / 2,048x1,536 / 1,600x1,200 / 640x480 pixels
Lens

Fujinon 12x Optical zoom lens , F2.8(Wide) - F5.0(Telephoto)
Lens focal length

f=5.9mm - 70.8mm, Equivalent to 33 - 396mm on a 35mm camera
Aperture

F2.8 - F6.4(Wide) / F5.0 - F8.0(Telepshoto), max 5 steps in 1/3 EV increment
Digital zoom

Approx. 5.7x
Focus distance
Normal
bulletWide Angle: Approx. 40cm / 1.3ft. to infinity
bulletTelephoto: Approx. 1.5m / 4.9ft. to infinity
Macro
bulletWide Angle: Approx. 5cm / 2.0in. to 3m / 9.8ft.
bulletTelephoto: Approx. 80cm / 2.6ft. to 3m / 9.8ft.
Super Macro
bulletApprox. 2cm / 0.8in. to 1m / 3.3ft.
Sensitivity

Auto / Auto (800) / Auto (400) / Equivalent to ISO 64 / 100 / 200 / 400 / 800 / 1600 / 3200 (Standard Output Sensitivity)

*ISO3200:3M pixels (Number of recorded pixels)
Exposure control

TTL 256-zone metering
Exposure modes

Programmed AE, Aperture Priority AE, Shutter Priority AE
Shooting modes
Mode dial

Auto, Natural Light, SP1, SP2, P, A, S, M, Panorama, Movie

SP1/SP2

Portrait, Landscape, Sport, Night, Fireworks, Sunset, Snow, Beach, Museum, Party, Flower, Text, PS(Picture Stabilization)
Shutter speed

1/4 sec. to 1/2000 sec. (Auto mode)

8 sec. to 1/2000 sec. (All other modes)

(depends on shooting mode)
Continuous shooting
bulletTop-3 (max. 1.4 frames/sec.)
bulletLast-3 (max. 1.4 frames/sec.)
bulletLong-period (max. 1.4 frames/sec.)
bulletTop-6, High speed (max. 3.3 frames/sec., 5M pixels)
bulletTop-15, Ultra High speed (max. 7.5 frames/sec., 2M pixels)
Focus
bulletAuto focus (Area, Multi, Center) / Continuous AF
bulletAF assist illuminator available
White balance

Automatic scene recognition, Preset (Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light), Custom
Self-timer

Approx. 10sec. / 2sec. delay
Flash

Auto flash

Effective range: (ISO AUTO)
Normal
bulletWide angle: Approx. 40cm / 1.3ft. to 8.7m / 28.5ft.
bulletTelephoto: Approx. 1.5m / 4.9ft. to 4.8m / 15.7ft.
Macro
bulletWide angle: Approx. 30cm / 1.0ft. to 3m / 9.8ft.
bulletTelephoto: Approx. 80cm / 2.6ft. to 3m / 9.8ft.
Flash modes
bulletRed-eye removal OFF : Auto, Forced Flash, Suppressed Flash, Slow Synchro.
bulletRed-eye removal ON : Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro
Electronic Viewfinder

0.2-inch, Approx. 200,000 dots FLCD monitor

(R/G/B colors are displayed in a single dot) Approx. 97% coverage
LCD monitor

2.7-inch, Approx. 230,000 dots, TFT color LCD monitor, Approx. 97% coverage
Movie recording
bullet640x480 pixels, 30 frames/sec.
bullet320x240 pixels, 30 frames/sec.

With monaural sound

*Zoom function cannot be used during movie recording.
Photography functions

Panorama shooting mode, Face detection (with red-eye removal), High speed shooting, Best framing, Post shot assist windows, Frame No. memory, Histograms
Playback functions

Slide show, Face detection (with red-eye removal), Trimming, Multi-frame playback (with Micro thumbnail), Sorting by date, Image rotate, Voice Memo, Histograms (Highlight warning)
Video output

NTSC / PAL selectable
Digital interface

USB 2.0 High-speed
Power supply *4

4 x AA type alkaline batteries (included), Ni-MH rechargeable batteries (optional) or Lithium batteries (optional), DC coupler CP-04 with AC power adapter AC-5VX (optional)
Dimensions

102.5(W)x73(H)x67.8(D) mm / 4.1(W)x2.9(H)x2.7(D) in. (excluding accessories and attachments)
Weight

Approx. 325g / 11.5oz. (excluding accessories, batteries and memory card)
