EZTherm 875 Thermal Imaging Camera

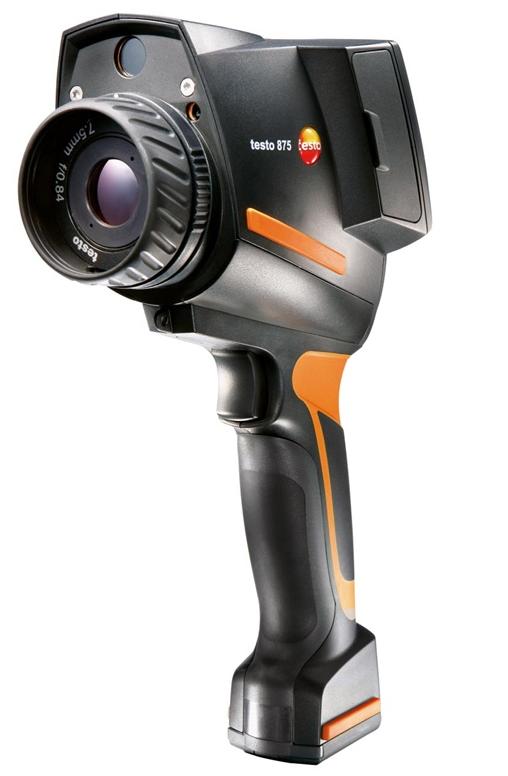

EZTherm 875 Thermal Imager



Features

bulletIntegrated Dual Vision (Thermal and Visible)
bulletAutomatic Hot/Cold Spot Recognition
bulletDisplays of Surface Moisture Distribution
bulletManual Focus for sharp image resolution
bulletDetection of Mold Risk Spots
bulletInterchangeable Lenses for Greater Flexibility
bulletAuto Hot/Cold Spot Detection
bullet1/4 VGA resolution 160 x 120 (19,200  pixels)
bulletPC Software





EZTherm 875 Thermal Imaging Camera are easy to operate and feature a lightweight, waterproof and highly ergonomic housing design that is comfortable to hold. The 875 comes bundled with a full professional advanced analysis and report generation software features powerful temperature analysis functionality and highly productive multi page survey inspection report generation. With 3 times the number of pixels of competing entry level infrared cameras, the EZTherm cameras produce infrared images that are substantially sharper making the analysis of thermal images more accurate, intuitive and precise. In addition, because of exceptional camera features and options, infrared camera establish a new level of performance for the entry-level thermographer.


Specifications are subject to change without notice.

Specifications:

Infrared Camera Image Output
• Detector Type: FPA 160 x 120 Pixels
• Thermal Sensitivity: <100 mk at +30 °C
• Field of View, min. Focus Distance:
32° x 23°/0.1 m (Standard Lens)
9° x 7°.0.5 m (Telephoto Lens)
• Geometric Resolutions (FOV):
3.3mrad (Standard Lens)
1.0 mrad (telephoto Lens)
• Image Refresh Rate: 33 HZ
• Focus: Manual with Dynamic Motor Focus
• Spectral Range: 8 to 14 µm

Visual Camera
• Optical Field/min. Focus Distance: 33° x 25° / 0.4 m
• Image Size: 640 x 480 pixels

Image Presentation
• Image Display: 3.5”LCD with 320 x 240 Pixels
• Display Options: Only IR/Only Visible/PIP
• Video output: USB 2.0
• Color Palettes: 9 ( Ironbow, Rainbow, Cold/Hot, Blue/Red, Grey, In2%

Measurement
• Temperature Range: -20 °C to 280 °C
• Accuracy: -2°C, ± 2% of mv (-20 °C to +350 °C)
• Minimum Diameter Measurement Point:
10mm at 1 M (Standard Lens)
3 mm at 1 M (Telephoto Lens)
• Emissivity Settings: 0.01 to 1.0(With Preprogrammed Settings)
• Reflected Temperature Compensation: Manual

Imager Equipment
• Digital Camera: Yes
• Power LEDs: No
• Motor Focus: No
• Standard Lens (32° x 23°): Yes
• Telephoto Lens (9° x 7°): Optional
Voice Recording: No

Measuring Functions
• Standard Measurement (1 Point)
• Hot/Cold Spot Recognition
• Two Point Measurement
• Isotherms
• Min/Max on Areas

Image Storage
• File Format: .bmt export options in .bmp, .jpg, .
• Data Storage Device: 2 GB Sd Card (Approximately 1000 Images)

Power Supply
• Battery Type: Fast Charging Li-ion Battery
• Operating Time: 4 Hours
• Charging Options: In Instrument or optional Charging Station
• AC Operation: Yes

Ambient Conditions
• Operating Temperature Range: -15 °C to + 40 °C
• Storage Temperature Range: -30 °C to + 60 °C
• Air Humidity : 20% to 80% Not Condensing
• Protection Class of Housing: IP54
• Vibration (IEC 68-2-6): 2G

Physical Features
• Weight: 900g
• Dimensions : 152 x 108 x 262 mm
• Tripod Mount: Yes
• Housing: ABS

PC Software
• System Requirements: Windows XP, Windows Vista, USB 2.0 Interface

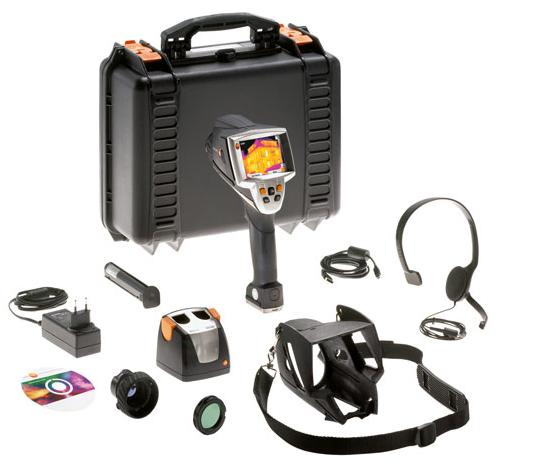

Additional items included in EZTherm 875:

bullet

Telephoto lens 9˚ x 7˚

bullet

Protective Lens

bullet

Additional Li-ion Rechargeable Battery

bullet

Tripod Adapter

bullet

Charger

bullet

Robust Case

bullet

USB Cable

bullet

SD Card

bullet

Pro Software



Model EZTherm 875-1 EZTherm 875-2 EZTherm 875-2Kit
Part # 915033 915034 915035
Protective Lens Optional Included Included
Telephoto Lens N/A Optional Included
Additional Battery Optional Optional Included
Fast Battery Charger Optional Optional Included
Sunshield Optional Optional Included
Soft Case Optional Optional Optional

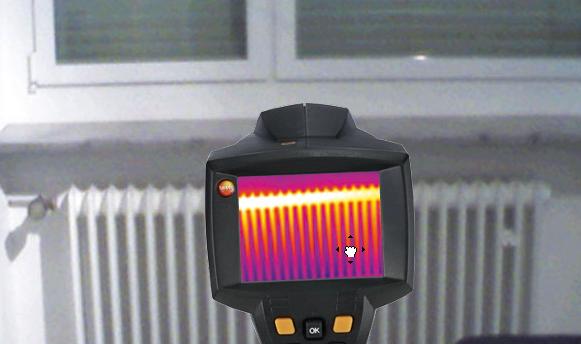

Test heating systems.

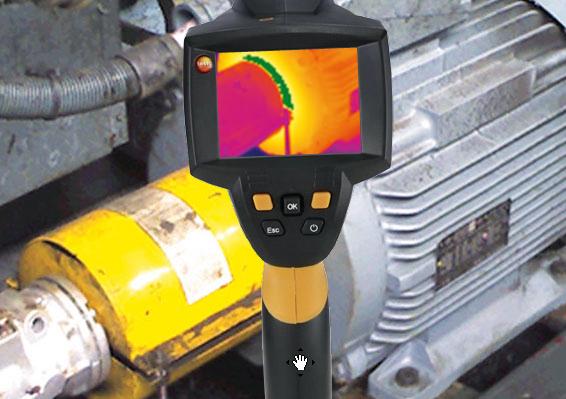

Maintain your rotating equipment.

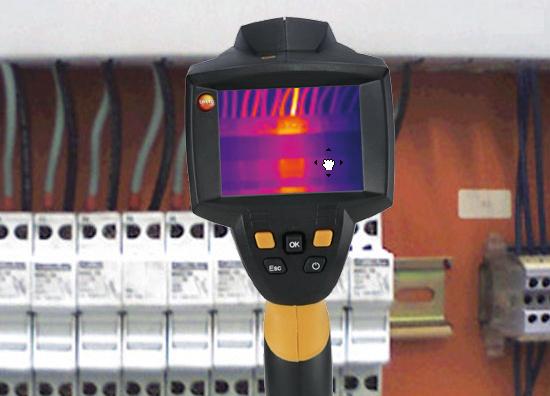

Perform regular checks of you critical electrical systems.

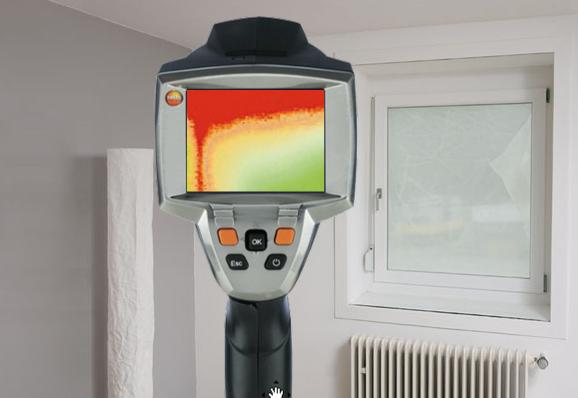

Locate high moisture areas that can become breeding area for mold.
